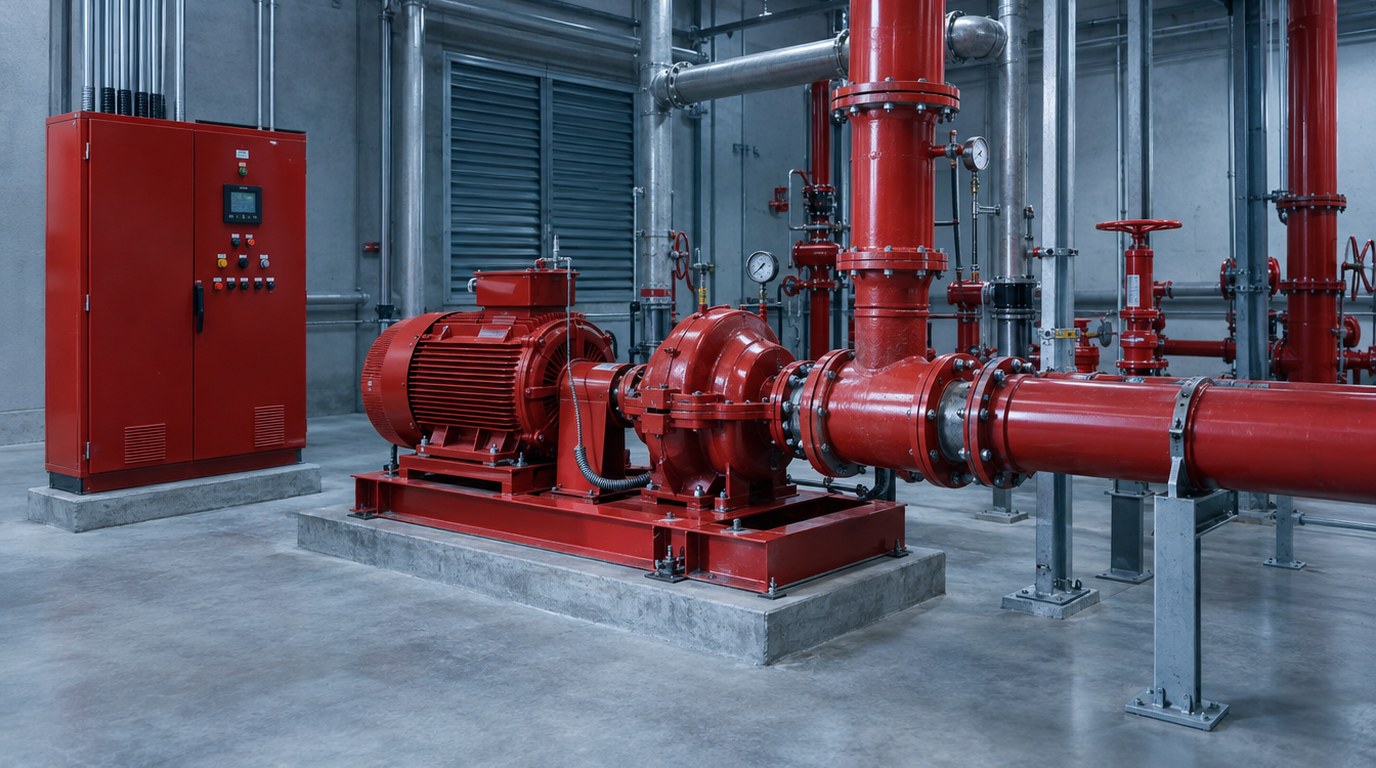

Fire Pump Design and Sizing for Commercial Buildings

When a hydrant flow test shows that the street main cannot push enough water to the top floor or the back of a large warehouse, the answer is a fire pump. It is a dedicated, listed pump that boosts pressure to the sprinkler and standpipe systems, and it has to start every time, with no exceptions. This article explains how fire pumps are sized and designed under NFPA 20 for commercial buildings.

Budlong coordinates pump selection, piping, power and controls inside a single design team, backed by our fire safety solutions and a leadership group described on our leadership page. Below you will find the logic behind the numbers, so owners and architects can ask better questions at the first coordination meeting.

1. What Is a Fire Pump?

A fire pump is a centrifugal pump that has been tested and listed for fire service. It takes water from a public main, a storage tank or another approved source and raises its pressure to meet the demand of the building. Because its only purpose is to serve a fire, it is built and installed to a different standard from a domestic booster pump. Parts such as the controller, the transfer switch and the driver are all listed for fire pump use.

Why a pump is sometimes unavoidable

Sprinklers need a minimum pressure at the most remote head, and standpipes need a minimum pressure at the top outlet. A high-rise adds hundreds of feet of elevation. A distribution center adds long runs and high density demand. If the municipal supply cannot cover both, the shortfall must come from a pump or from gravity storage.

Where the pump sits in the larger plan

The pump belongs to the water supply side of the system, so it must match the demand of the piping it serves. Read our guide to fire sprinkler system design for how that demand is generated, and see our plumbing engineering services for the water service and backflow arrangements that precede the pump.

2. How a Fire Pump System Works

A fire pump installation is more than a pump. It is a small plant made of coordinated parts that each have a specific role.

The main components

The start sequence

While the system is idle, the jockey pump holds pressure. When a sprinkler opens or a hose valve is used, system pressure falls. At a set point the controller starts the fire pump. The pump then runs until a person stops it at the controller, because an automatic stop could shut off water in the middle of a fire. Alarms and supervisory signals go to the building fire alarm panel.

Reading the pump curve

Every pump has a curve that shows pressure against flow. Listed pumps deliver at least 150 percent of their rated flow while keeping at least 65 percent of their rated pressure, and their pressure at no flow cannot exceed a limit set by the standard. The designer compares the building demand point to that curve and checks that it falls on the usable part.

Also Read: How to Read and Prepare a Plumbing Riser Diagram

3. Pump and Driver Types

Pump configurations

Horizontal split-case pumps are common because they are serviceable without disturbing the piping. Vertical in-line pumps save floor area and suit tight mechanical rooms. End suction pumps serve smaller flows. Vertical turbine pumps are used where water comes from a tank or well below the pump level, since the impellers sit under the water surface.

Electric and diesel drivers

Electric motor drives are the most common choice in cities with a dependable utility. They need a robust electrical service and a plan for loss of power. Diesel engine drives carry their own fuel and do not depend on the grid, but they add fuel storage, exhaust, combustion air and batteries. A few installations pair an electric main pump with a diesel backup.

Electrical decisions around the pump overlap with the rest of the building. Our electrical solutions team plans the service entrance, the dedicated feeder and the generator so the pump has a power path that survives an outage. A good example of standby power coordination is shown by the LACMTA emergency generator replacement.

4. Codes and Standards

NFPA 20, the Standard for the Installation of Stationary Pumps for Fire Protection, is the principal document. You can find it in the NFPA codes and standards catalog. Several others work with it.

Documents that interact with NFPA 20

• NFPA 13 and NFPA 14 supply the demand for sprinklers and standpipes.
• NFPA 25 covers inspection, testing and maintenance after the system is in service.
• NFPA 22 covers private water tanks when storage supplies the pump.
• NFPA 70, Article 695, covers fire pump power supplies, feeder protection and wiring.
• The International Building Code, available from the International Code Council, sets pump room protection and standby power triggers for high-rise buildings.

California overlays

California adopts the model codes with amendments, and local fire authorities add their own submittal rules. Hospital projects are reviewed by the Department of Health Care Access and Information, and its seismic certification program affects how pumps and controllers are anchored. Our OSHPD and HCAI guide covers that path in detail.

Confirm early whether your local fire authority requires a separate pump submittal, a pre-approved controller or a witnessed field test. These are local habits that do not appear in any model code.

Also Read: Code Compliant Fire Safety Engineering in California

Listed equipment is confirmed through certification directories such as UL Solutions, and the pump, controller and driver must be listed for fire service as an assembly that works together.

5. Applications by Building Type

High-rise offices and residential towers

Standpipes in tall buildings need high pressure at the roof, and lower floors may need pressure reducing valves to keep hose connections within safe limits. Tall buildings are often divided into pressure zones with one or more pumps. See how this fits with other vertical systems in our article on MEP solutions for high-rise residential projects and our work on Hyatt Regency Century Plaza.

Commercial campuses and mixed use

Large floor plates need more flow, while podiums and parking structures add standpipe demand. Our commercial building experience covers many of these arrangements.

Industrial, laboratory and storage buildings

High piled storage and process areas increase sprinkler density, so the required flow can be large. Specialty hazards may call for foam or water spray in addition to standard sprinklers. Learn how we serve industrial and laboratory facilities, and note that the Hoag Hospital fuel tank farm shows how fuel systems and fire protection overlap.

Airports and large public facilities

Terminals and utility plants are large, continuously occupied and often fed by campus water loops. Our aviation practice and the Central Utility Plant at LAX show how critical infrastructure is engineered for reliability.

Not sure whether your building needs a fire pump?

Send us the flow test and the building program and we will tell you what the hydraulics say before you commit to equipment.

Request a pump review

6. Sizing and Design Process

Sizing is a hydraulic exercise with a defined order. Skipping steps leads to either an oversized pump that wastes space and capital, or an undersized one that fails acceptance.

Step by step

1. Obtain a current hydrant flow test that shows static pressure, residual pressure and flow.
2. Calculate sprinkler demand from the hazard classification and the design area, then add the hose stream allowance. Standpipe demand begins at 500 gpm for the first standpipe, with additional flow for each further standpipe, up to the limit that the edition of NFPA 14 allows.
3. Run friction loss with the Hazen-Williams formula and add elevation pressure, which is about 0.433 psi per foot of height.
4. Subtract the supply pressure available at that flow to find the pressure the pump must add.
5. Choose the nearest standard rated pump whose curve covers the demand point, and check the 150 percent flow condition.
6. Select a driver, a controller and set points, then design the room around them.

An illustrative calculation

The numbers below are a teaching example only and do not describe any specific project.

Suction pressure is a factor too. The standard limits how low suction pressure may fall at peak flow, and it expects that the pump is placed so that water arrives in a smooth, stable stream. That is why NFPA 20 calls for straight pipe ahead of the pump and sets limits on fittings and valves close to the suction flange.

A pump is selected from a curve, so the calculation, not the building area, is the only honest basis for size. Two buildings of equal floor area can need pumps that differ several times in capacity.

Coordination outputs

The team then issues pump room layouts, a piping and instrumentation diagram, electrical single line diagrams and a matrix of controller alarms. Clash detection is vital in a congested room, so our work follows the practices in MEP BIM coordination and clash detection and early MEP coordination.

7. Special Cases and Site Constraints

Storage tanks and suction supplies

Where municipal supply is weak or unreliable, a tank can serve as the source. Tank volume depends on the duration the code requires for the hazard, and the pump must be positioned so that it can draw from the tank at a stable pressure. Related water systems, such as those described in our guide to stormwater and greywater reuse, must never be mixed with the fire water source.

Seismic anchorage and flexible connections

California buildings must resist earthquakes, so the pump base, controller, tanks and piping need engineered anchorage and flexible connections where pipes cross building joints. Pumps in hospitals can require special seismic certification. Leave room for this hardware in the layout.

Standby power and fuel

Diesel drives need fuel capacity for a defined run time, and a generator that feeds an electric pump must start the motor without a voltage collapse. Experience on the USC generator replacement project informs how we plan these starts. A matching load study is also required, and our guide to electrical load calculation for commercial buildings explains the method.

Also Read: Electrical Load Calculation Worksheet

Existing buildings

Replacing a pump in an active building needs a temporary supply plan. Impairment notices, a fire watch and short outage windows are scheduled with the owner and the fire authority. Retrofits also reveal old piping that may not carry the new pressure.

8. How to Specify a Fire Pump and What Drives Cost

A good specification names the rated flow and pressure, the driver type, the listed controller, the power source, the test requirements and the factory and field tests that must be witnessed. It should also set out lead time expectations, because large pumps and controllers are often built to order.

Upgrades often pay back through better reliability and lower risk. For examples of how capital planning is framed, see commercial building MEP upgrades that improve ROI.

9. Best Practices, Testing and Maintenance

Design best practices

• Put the pump room on the lowest level near an exterior wall so that equipment can be delivered and replaced.
• Keep suction piping short, straight and generously sized.
• Provide a clear route for a flow test discharge, including a safe drain or a place to return water to a tank.
• Pick controller set points with a margin between the jockey pump and the main pump.
• Protect electric feeders so that they survive fire exposure long enough to serve the pump.

Acceptance testing

An acceptance test confirms that the pump delivers its rated curve at churn, at rated flow and at 150 percent flow, and that the controller starts the driver under both normal and alternate power. Third-party verification adds assurance, and our building commissioning services describe how that is organized. Electrical protection settings should align with the study described in our article on arc flash analysis and NFPA 70E compliance.

Ongoing maintenance

NFPA 25 sets the schedule. Regular no flow runs prove that the driver starts and reaches speed, while the annual flow test compares performance with the original curve. Keep logs, replace batteries on a calendar, test fuel and exercise the transfer switch. The National Institute of Standards and Technology publishes fire research that helps owners understand why dependable water supplies matter.
